Yellow Dog/Gateway Integration Overview

Yellow Dog/Gateway Integration Overview

This document will review the Yellow Dog Gateway (formerly Galaxy) Integration

Sync Approach

This will be setup as a 2Way – Pull Sales & Push Items
  1. Sales – Pulled from the FTP
  2. Codes – Manually added to Yellow Dog. Click Here for steps
  3. Items – Pushed to a .csv file

Requirements for items to push to Gateway

  1. The item must have a SKU
  2. The Item must have a Description

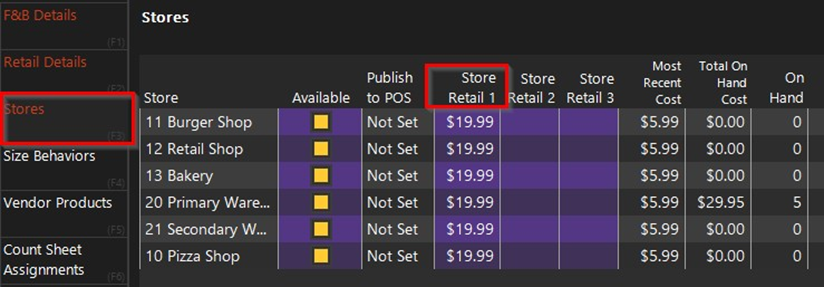

  3. The item must have Retail1 set

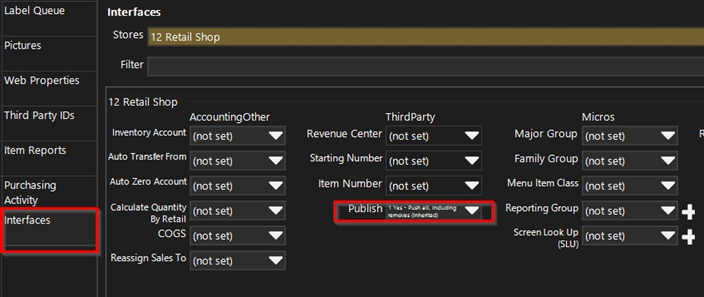

  1. The item must have Publish enabled

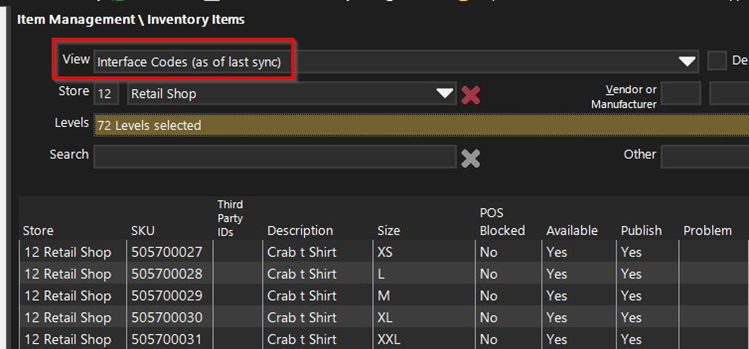

  1. The item must not be POS Blocked – Publish and POS Blocked can both be checked in the Interface Codes as of Last Sync View

  1. The item cannot have a status of Removed

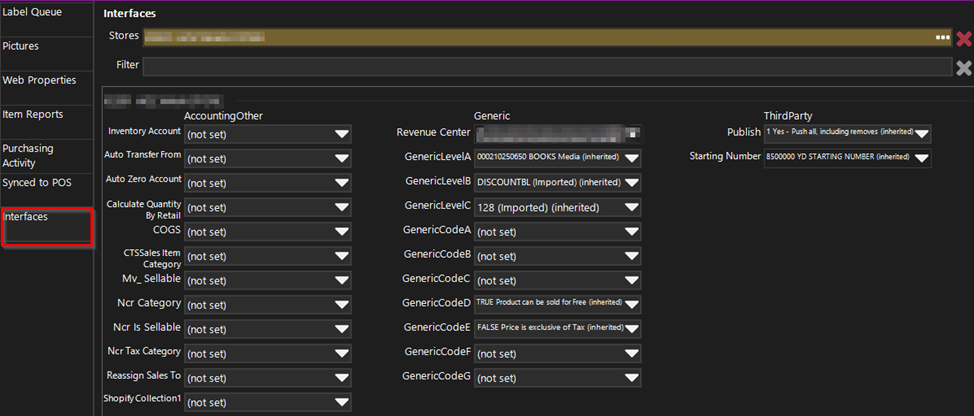

  1. The item must have Generic Levels A-C and Generic Code D & E assigned
    1. Level A – Company
    2. Level B – Discount Group
    3. Level C – Taxed
    4. Code D – Comps
    5. Code E – Fkey Flag




Item Management Best Practices

  1. Updates/Edits to items should be made in Yellow Dog and allowed to push to Gateway. Updates/Edits made in Gateway will be overwritten that next the sync runs.

Limitations

  1. SKU Length maximum is 20 characters

For additional information on this integration please visit https://help.yellowdogsoftware.com/gateway
